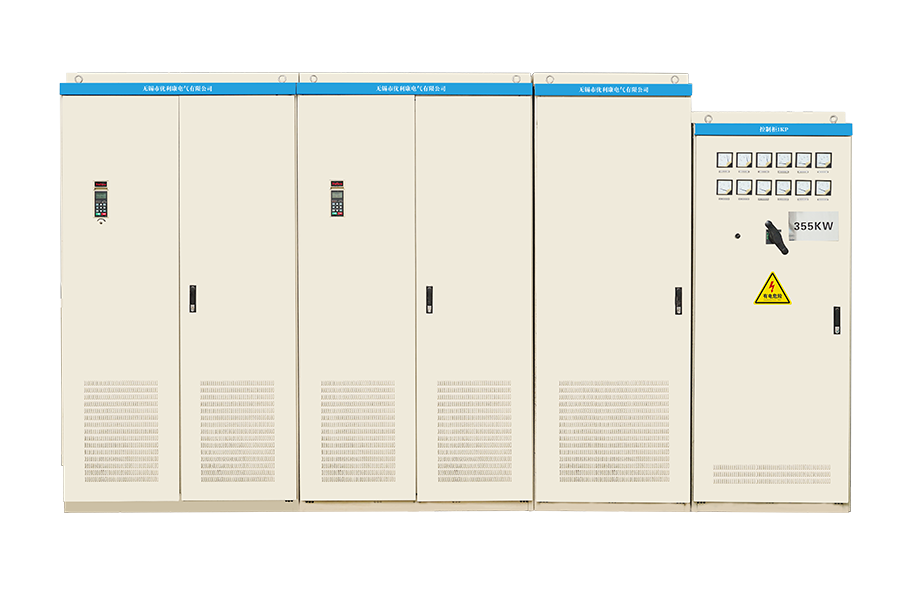

YD5900 Four-Quadrant VFD

Capacity

3-PH 660VAC: 55-630kW
3-PH 660VAC: 75-760kW

Control mode

Sinusoidal wave Sin linear control

Harmonic suppression

Harmonic THD≤5%

Motor Type

Permanent Magnet Synchronous Motor
Induction Asynchronous Motor

Optional Accessories

LLC reactor, filter

Data Download Contact Us

YD5900 Four-Quadrant VFD

Catalog

Manual

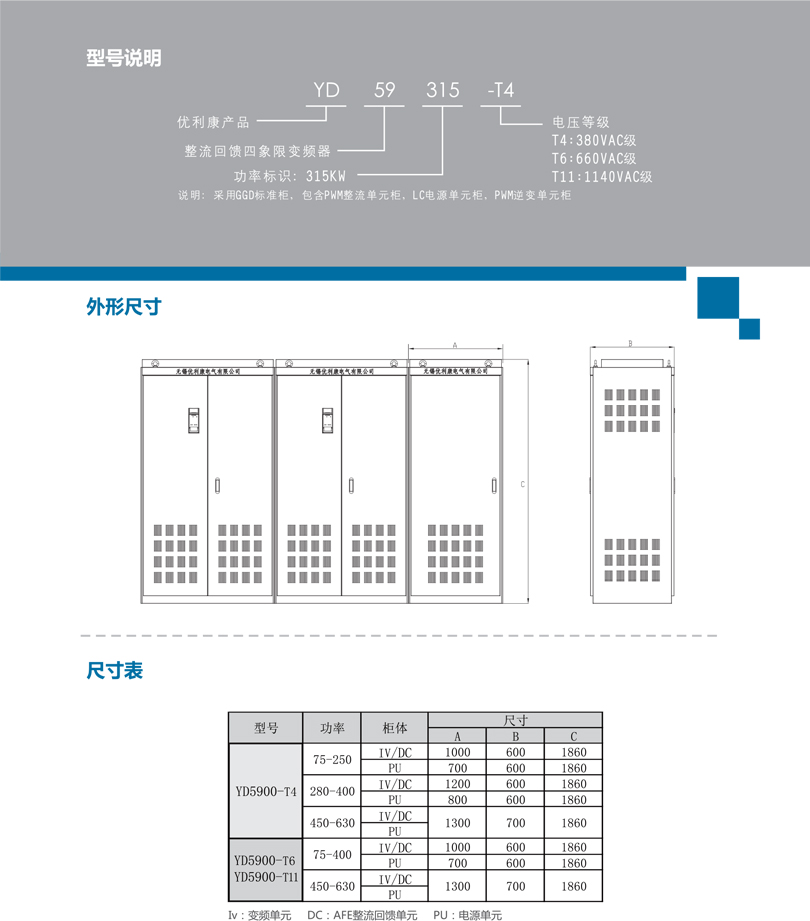

Installation drawing

YD5900 四象限彩頁

Download Scan the code

YD5900 使用說明書 V01

Download Scan the code
